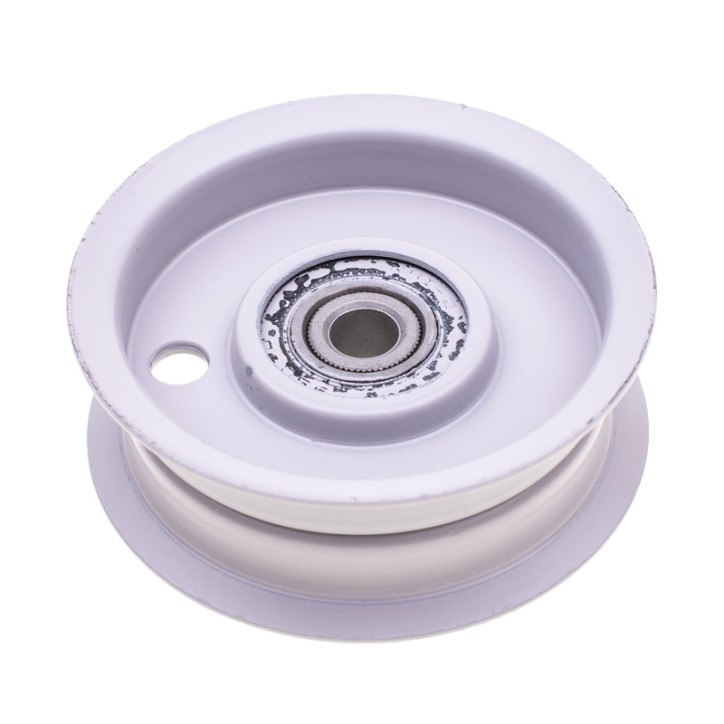

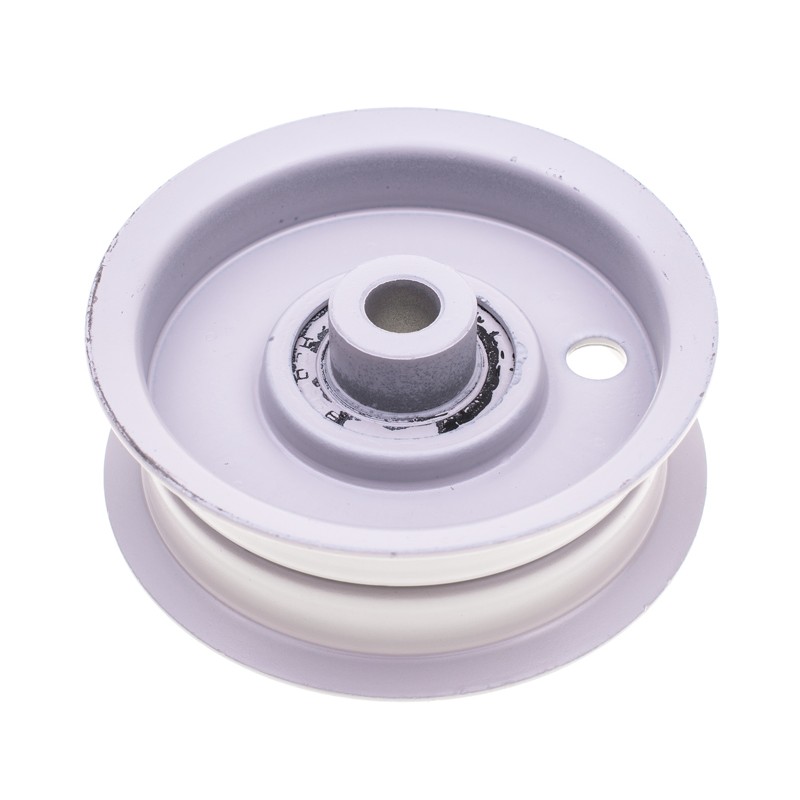

Kolo pasowe MTD

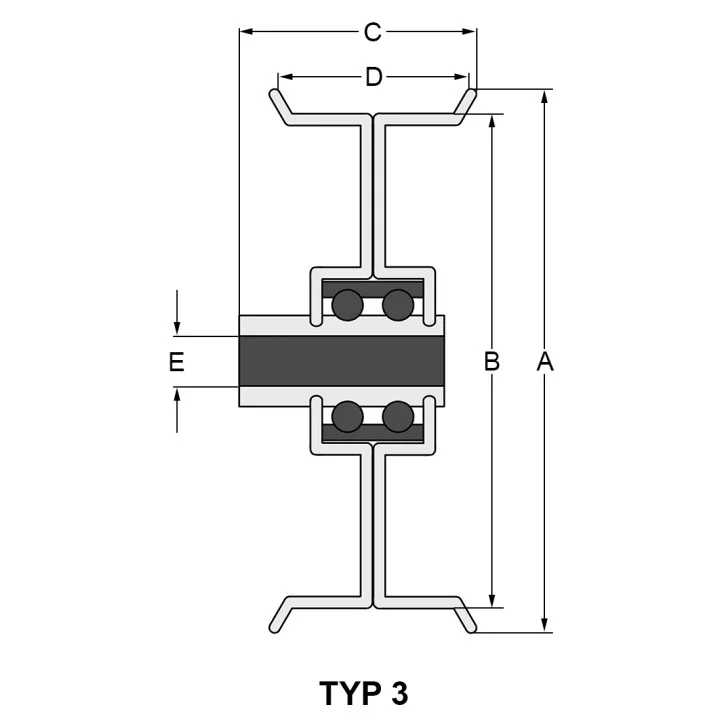

Wymiary:

Srednica zewnetrzna(A): 81 mm

Srednica wewnetrzna(B): 68 mm

Wysokosc calkowita(C): 31 mm

Szerokosc paska(D): 25 mm

Srednica otworu(E): 9,5 mm

nr katalogowy
RO15603,
MTD 756-3054A, 7563054A,

modele
MTD
13/92 / 13AC488E678 (2004) / Drive system
130/92 H / 13AH711E615 (2011) / Drive system
155-92 LE / 13HM71KE676 (2014) / Drive system
16/92 H / 13AT715E600 (2013) / Drive system
160/92 H / 13AT713E678 (2010) / Drive system
160/92 H / 13AT713E678 (2011) / Drive system
160/92 H / 13AT713E678 (2012) / Drive system
16-92 H Swiss Platinum / 13BT493E686 (2010) / Drive system
16-92 H Swiss Platinum / 13BT493E686 from 08.11.2010 (2011) / Drive system
16-92 H Swiss Platinum / 13CT493E686 (2011) / Drive system
175/105 H / 13A3497N676 (2008) / Drive system
180/105 H / 13AT493N678 (2007) / Drive system
180/92 H / 13AT493E676 (2007) / Drive system
180/92 H / 13AV495E615 (2009) / Drive system
180/92 HT / 13A3498E676 (2006) / Drive system
180/92 HT / 13A3498E676 (2007) / Drive system
180/92 HT / 13A4498E676 (2007) / Drive system
185/92 / 13AJ713E678 (2010) / Drive system
20/105 H / 13AT715N600 (2013) / Drive system
200/105 H / 13AT493N676 (2008) / Drive system
200/105 H / 13BT493N676 (2009) / Drive system
200/105 H / 13BT493N676 (2010) / Drive system
200/105 H / 13CT493N676 (2011) / Drive system
200/105 HT / 13A4498N676 (2007) / Drive system
200/105 HT / 13A7498N676 (2006) / Drive system
200/105 HT / 13A7498N676 (2007) / Drive system
220/105 H / 13AU493N615 (2008) / Drive system
24/105 H / 13DI513N686 (2011) / Drive system
25/105 H / 13CI513N686 (2009) / Drive system
25/105 H / 13CI513N686 (2010) / Drive system
Advance PE 160 HK / 13RG71KE676 (2013) / Drive system
Advance PN 180 HK / 13RG71KN676 (2013) / Drive system
Blue Attraction 92-155 H / 13I271KE676 (2016) / Drive system
Blue Attraction 92-155 H / 13IM71KE676 (2015) / Drive system
Celebration 105 A / 13AV488N686 (2005) / Drive system
Celebration 105 A / 13AW488N686 (2005) / Drive system
Celebration 105 H / / Drive system
Celebration 105 H / 13A7498N686 (2005) / Drive system
Celebration 92 A / 13AV488E686 (2005) / Drive system
Celebration 92 A / 13AV488E686 (2007) / Drive system
DL 92 BH / 13HH71KE677 (2015) / Drive system
DL 92 BH / 13HH71KE677 (2016) / Drive system
DL 92 H / 13H2715E676 (2014) / Drive system
DL 92 H / 13H2715E677 (2015) / Drive system
DL 92 H / 13H2715E677 (2016) / Drive system
DL 92 H / 13H2715E677 (2017) / Brake rod, Bypass lever, Axle support right side
DL 92 H / 13H2715E677 (2017) / Hydrostatic gearbox, Belt, Pedals
DL 920 H / 13H271KE677 (2017) / Brake rod, Bypass lever, Axle support right side
DL 920 H / 13H271KE677 (2017) / Hydrostatic gearbox, Belt, Pedals
DL 920 H / 13H271KE677 (2018) / Brake rod, Bypass lever, Axle support right side
DL 920 H / 13H271KE677 (2018) / Hydrostatic gearbox, Belt, Pedals
JE 125 H / 13AC498E678 (2004) / Drive system
JE 135 A / 13A1483E678 (2007) / Drive system
JE 135 A / 13AA488E678 (2004) / Drive system
JE 135 A / 13AH488E670 (2007) / Drive system
JE 135 A / 13AH488E678 (2005) / Drive system
JE 135 A / 13AM488E678 (2005) / Drive system
JE 135 A / 13CA488E678 (2005) / Drive system
JE 135 AT / 13A1488E678 (2005) / Drive system
JE 135 H / 13AH493E676 (2007) / Drive system
JE 135 H / 13AH493E676 (2008) / Drive system
JE 135 H / 13BH493E676 (2009) / Drive system
JE 145 A / 13AM483E478 (2007) / Drive system
JE 145 A / 13AM483E670 (2007) / Drive system
JE 145 A / 13AM483E678 (2006) / Drive system
JE 145 A / 13AM483E678 (2007) / Drive system
JE 145 A / 13AM488E670 (2007) / Drive system
JE 150 H / 13AA498E678 (2004) / Drive system
JE 150 H / 13AM498E678 (2005) / Drive system
JE 150 H / 13CA418E678 (2003) / Drive system
JE 180 H / 13BT493E676 (2009) / Drive system
JN 130 A / 13AM488N622 (2005) / Drive system
JN 135 AT / 13A1488N622 (2006) / Drive system
JN 135 AT / 13A1488N622 (2007) / Drive system
JN 150 A / 13AA488N678 (2004) / Drive system
JN 150 A / 13AM488N678 (2005) / Drive system
JN 150 A / 13CA408N678 (2004) / Drive system
JN 150 A / 13CA488N678 (2004) / Drive system
JN 150 H / 13AM493N676 (2007) / Drive system
JN 150 H / 13AM493N676 (2008) / Drive system
JN 150 H / 13AM498N670 (2007) / Drive system
JN 150 H / 13AM498N678 (2005) / Drive system
JN 150 H / 13AM498N678 (2006) / Drive system
JN 150 H / 13AM498N678 (2007) / Drive system
JN 155 A / 13AM483N478 (2007) / Drive system
JN 155 A / 13AM483N678 (2006) / Drive system
JN 155 A / 13AM483N678 (2007) / Drive system
JN 160 H / 13AT493N600 (2009) / Drive system
JN 175 H / 13A3498N678 (2005) / Drive system
JN 175 H / 13BN493N676 (2009) / Drive system
JN 175 H / 13BN493N676 (2010) / Drive system
JN 175 H / 13CN493N676 (2011) / Drive system
JN 175 HB / 13AD498N676 (2005) / Drive system
JN 180 H / 13AQ498N678 (2004) / Drive system
JN 200 AT / 13A7483N478 (2007) / Drive system
JN 200 AT / 13A7483N678 (2006) / Drive system
JN 200 AT / 13A7483N678 (2007) / Drive system
JN 200 AT / 13A7488N622 (2006) / Drive system
JN 200 AT / 13A7488N622 (2007) / Drive system
JN 200 AT / 13A7488N678 (2004) / Drive system
JN 200 AT / 13A7488N678 (2005) / Drive system
LE 125/92 H / 13AH711E600 (2010) / Drive system
LE 125/92 H / 13AH711E600 (2011) / Drive system
LE 135 H / 13AH713E600 (2010) / Drive system
LE 155 H / 13RM713E678 (2011) / Drive system
LE 155 H / 13RM713E678 (2012) / Drive system
LE 160/92 H / 13AT71KE676 (2013) / Drive system
LE 160/92 H / 13HT71KE676 (2014) / Drive system
LE 180/92 H / 13IT71KE676 (2016) / Drive system
LE 180/92 H / 13IT71KE676 (2017) / Brake rod, Bypass lever, Axle support right side
LE 180/92 H / 13IT71KE676 (2017) / Hydrostatic gearbox, Belt, Pedals
LE 180/92 H / 13IT71KE676 (2018) / Brake rod, Bypass lever, Axle support right side
LE 180/92 H / 13IT71KE676 (2018) / Hydrostatic gearbox, Belt, Pedals
LN 175 H / 13AN713N600 (2010) / Drive system
LN 175 H / 13RN713N678 (2011) / Drive system
LN 175 H / 13RN713N678 (2012) / Drive system
LN 200 H / 13RT713N678 (2011) / Drive system
LN 200 H / 13RT713N678 (2012) / Drive system
LT 105 EXHK / 13AG71KN682 (2018) / Belt drive system, Tension pulley, Idler pulley
LT 76 H / 13AH711A679 (2012) / Drive system
LT 92 EXH / 13H271KE682 (2016) / Drive system
LT 92 EXHB / 13HM71KE682 (2017) / Brake rod, Bypass lever, Axle support right side
LT 92 EXHB / 13HM71KE682 (2017) / Hydrostatic gearbox, Belt, Pedals
LT 92 EXHB / 13HM71KE682 (2018) / Brake rod, Bypass lever, Axle support right side
LT 92 EXHB / 13HM71KE682 (2018) / Hydrostatic gearbox, Belt, Pedals
LT 92 H / 13AH711E679 (2012) / Drive system
Optima LE 145 H / 13IM71KE378 (2017) / Brake rod, Bypass lever, Axle support right side
Optima LE 145 H / 13IM71KE378 (2017) / Hydrostatic gearbox, Belt, Pedals
Optima LE 145 H / 13IM71KE678 (2015) / Drive system
Optima LE 145 H / 13IM71KE678 (2016) / Drive system
Optima LE 145 H / 13IM71KE678 (2017) / Brake rod, Bypass lever, Axle support right side
Optima LE 145 H / 13IM71KE678 (2017) / Hydrostatic gearbox, Belt, Pedals
Optima LE 145 H / 13IM71KE678 (2018) / Brake rod, Bypass lever, Axle support right side
Optima LE 145 H / 13IM71KE678 (2018) / Hydrostatic gearbox, Belt, Pedals
Optima LE 155 H / 13HM71KE678 (2014) / Drive system
Optima LE 155 H / 13HM71KE678N (2014) / Drive system
Optima LE 155 H / 13RM71KE678 (2013) / Drive system
Optima LE 155 H / 13RM71KE678 (2014) / Drive system
Optima LE 155 H / 13RM71KE678N (2013) / Drive system
Optima LN 165 H / 13IN71KN378 (2015) / Drive system
Optima LN 165 H / 13IN71KN378 (2016) / Drive system
Optima LN 165 H / 13IN71KN678 (2015) / Drive system
Optima LN 165 H / 13IN71KN678 (2016) / Drive system
Optima LN 165 H / 13IN71KN678 (2017) / Brake rod, Bypass lever, Axle support right side
Optima LN 165 H / 13IN71KN678 (2017) / Hydrostatic gearbox, Belt, Pedals
Optima LN 175 H / 13HN71KN678 (2014) / Drive system
Optima LN 175 H / 13HN71KN678N (2014) / Drive system
Optima LN 175 H / 13RN71KN678 (2013) / Drive system
Optima LN 175 H / 13RN71KN678 (2014) / Drive system
Optima LN 175 H / 13RN71KN678N (2013) / Drive system
Optima LN 180 H / 13HT71KN600 (2017) / Brake rod, Bypass lever, Axle support right side
Optima LN 180 H / 13HT71KN600 (2017) / Hydrostatic gearbox, Belt, Pedals
Optima LN 180 H / 13HT71KN678 (2016) / Drive system
Optima LN 200 H / 13HT71KN378 (2015) / Drive system
Optima LN 200 H / 13HT71KN378 (2016) / Drive system
Optima LN 200 H / 13HT71KN378 (2017) / Brake rod, Bypass lever, Axle support right side
Optima LN 200 H / 13HT71KN378 (2017) / Brake rod, Bypass lever, Axle support right side
Optima LN 200 H / 13HT71KN378 (2017) / Hydrostatic gearbox, Belt, Pedals
Optima LN 200 H / 13HT71KN378 (2017) / Hydrostatic gearbox, Belt, Pedals
Optima LN 200 H / 13HT71KN678 (2014) / Drive system
Optima LN 200 H / 13HT71KN678 (2015) / Drive system
Optima LN 200 H / 13HT71KN678 (2016) / Drive system
Optima LN 200 H / 13HT71KN678 (2017) / Brake rod, Bypass lever, Axle support right side
Optima LN 200 H / 13HT71KN678 (2017) / Hydrostatic gearbox, Belt, Pedals
Optima LN 200 H / 13HT71KN678 (2018) / Brake rod, Bypass lever, Axle support right side
Optima LN 200 H / 13HT71KN678 (2018) / Hydrostatic gearbox, Belt, Pedals
Optima LN 200 H / 13HT71KN678N (2014) / Drive system
Optima LN 200 H / 13RT71KN678 (2013) / Drive system
Optima LN 200 H / 13RT71KN678 (2014) / Drive system
P 155 HE / 13AM713E678 (2010) / Drive system
P 200 HN / 13AT713N678 (2010) / Drive system
Platinum RD / 13BI513N686 (2007) / Drive system
Platinum RD 20/92 H / 13CE513E686 (2008) / Drive system
Platinum RD 23/105 H / 13BB513N686 (2008) / Drive system
Power 1750 / 13HN715N683 (2016) / Drive system
Power 1750 / 13HN715N683 (2017) / Brake rod, Bypass lever, Axle support right side
Power 1750 / 13HN715N683 (2017) / Hydrostatic gearbox, Belt, Pedals
Power 1750 / 13HN715N683 (2018) / Brake rod, Bypass lever, Axle support right side
Power 1750 / 13HN715N683 (2018) / Hydrostatic gearbox, Belt, Pedals
Power 1750 / 13HN715N683H (2017) / Brake rod, Bypass lever, Axle support right side
Power 1750 / 13HN715N683H (2017) / Hydrostatic gearbox, Belt, Pedals
RA 125/76 H / 13AH711A600 (2011) / Drive system
RH 135/105 B / 13BA508N600 (2003) / Drive system from 01.01.2003
RH 135/105 B / 13BA508N600 (2003) / Drive system to 31.12.2002
RH 135/105 B / 13BA508N600 (2004) / Drive system
RH 150/105 / 13A3488N400 (2006) / Drive system
RH 150/105 / 13A3488N400 (2007) / Drive system
RH 150/105 / 13A3488N600 (2006) / Drive system
RH 150/105 / 13A3488N600 (2007) / Drive system
RH 150/92 B / 13AA488E676 (2004) / Drive system
RH 150/92 B / 13AM488E676 (2005) / Drive system
RH 155/105 H / 13BA519N600 (2004) / Drive system
RH 165/105 H / 13BD517N600 (2004) / Drive system
RH 170/105 H / 13AW493N676 (2006) / Drive system
RH 170/105 H / 13AW493N676 (2007) / Drive system
RH 175/105 A / 13A3488N600 (2005) / Drive system
RH 180/105 B / 13AT488N676 (2004) / Drive system
RH 180/105 B / 13AT488N676 (2005) / Drive system
SE 135 A / 13AA508E670 (2002) / Drive system to 31.12.2002
SE 135 A / 13AA508E678 (2002) / Drive system to 31.12.2002
SE 135 A / 13BA508E670 (2003) / Drive system from 01.01.2003
SE 135 A / 13BA508E670 (2003) / Drive system to 31.12.2002
SE 135 A / 13BA508E678 (2003) / Drive system from 01.01.2003
SE 135 A / 13BA508E678 (2003) / Drive system to 31.12.2002
SE 150 H / 13BA518E678 (2003) / Drive system
SE 155 H / 13AP518E678 (2002) / Drive system
SE 160 AT / 13A7508E678 (2002) / Drive system to 31.12.2002
SG 155 A / 13AP508G678 (2002) / Drive system to 31.12.2002
SG 155 A / 13AP508G678 (2003) / Drive system from 01.01.2003
SG 155 A / 13AP508G678 (2003) / Drive system to 31.12.2002
SG 175 H / 13AD518G678 (2002) / Drive system
SG 175 H / 13AD518G678 (2003) / Drive system
Smart RE 130 H / 13AH715E600 (2013) / Drive system
Smart RE 130 H / 13AH715E600 (2014) / Drive system
Smart RE 130 H / 13HH715E600 (2014) / Drive system
Smart RE 130 H / 13HH71KE600 (2014) / Drive system
Smart RE 130 H / 13HH71KE600 (2015) / Drive system
Smart RE 130 H / 13HH71KE600 (2016) / Drive system
Smart RE 130 H / 13HH71KE600 (2017) / Brake rod, Bypass lever, Axle support right side
Smart RE 130 H / 13HH71KE600 (2017) / Hydrostatic gearbox, Belt, Pedals
Smart RE 130 H / 13HH71KE600 (2018) / Brake rod, Bypass lever, Axle support right side
Smart RE 130 H / 13HH71KE600 (2018) / Hydrostatic gearbox, Belt, Pedals
Smart RE 130 HM / 13A271KE600 (2018) / Brake rod, Bypass lever, Axle support right side
Smart RE 130 HM / 13A271KE600 (2018) / Hydrostatic gearbox, Belt, Pedals
SN 135 A / 13AA508N678 (2002) / Drive system to 31.12.2002
SN 150 A / 13BA508N678 (2003) / Drive system from 01.01.2003
SN 150 A / 13BA508N678 (2003) / Drive system to 31.12.2002
SN 150 A / 13BA508N678 (2004) / Drive system
SN 155 H / 13AP518N670 (2002) / Drive system
SN 155 H / 13AP518N678 (2002) / Drive system
SN 155 H / 13BA518N670 (2004) / Drive system
SN 170 A / 13AP518N670 (2002) / Drive system
SN 170 A / 13AP518N678 (2002) / Drive system
SN 170 A / 13B3508N678 (2003) / Drive system from 01.01.2003
SN 170 A / 13B3508N678 (2003) / Drive system to 31.12.2002
SN 180 AT / 13A7508N678 (2002) / Drive system to 31.12.2002
SN 180 AT / 13B7508N678 (2003) / Drive system from 01.01.2003
SN 180 AT / 13B7508N678 (2003) / Drive system to 31.12.2002
SN 180 AT / 13B7508N678 (2004) / Drive system
SN 180 H / 13BQ518N678 (2003) / Drive system
SN 200 HAT / 13B7518N678 (2005) / Drive system
SN 210 A / 13BO508N678 (2003) / Drive system from 01.01.2003
SN 210 A / 13BO508N678 (2003) / Drive system to 31.12.2002
SN 210 A / 13BT508N678 (2003) / Drive system from 01.01.2003
SN 210 A / 13BT508N678 (2003) / Drive system to 31.12.2002
White Passion 92.165H / 13IN71KE676 (2017) / Brake rod, Bypass lever, Axle support right side
White Passion 92.165H / 13IN71KE676 (2017) / Hydrostatic gearbox, Belt, Pedals
White Passion 92.165H / 13IN71KE676 (2018) / Brake rod, Bypass lever, Axle support right side
White Passion 92.165H / 13IN71KE676 (2018) / Hydrostatic gearbox, Belt, Pedals

Dziękujemy obecnym klientom którzy zaufali naszym transakcjom i usługą naszej firmy

Regulamin sklepu

Polityka prywatności
